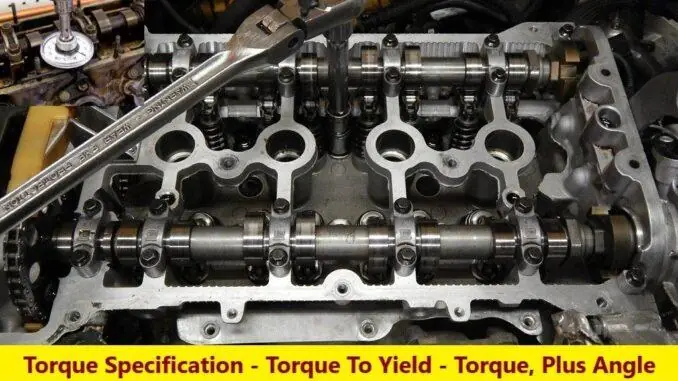

Torque Specification - Torque To Yield (TTY) - Torque Plus Angle - FAQ
Torque Specification - Torque To Yield (TTY) - Torque Plus Angle - FAQ

Without having the proper torque specification, assembling an engine, is just asking for failure.

This is especially true on today’s lightweight engines, that use mostly aluminum castings.

So, having the proper torque specification is crucial information, whenever you make repairs.

Furthermore, it’s not enough to just know the torque specification, you also need to know the correct sequence. So, most people do not realize that a bolt or a stud; acts like a big spring to hold parts together. Consequently, it has to be stretched, a certain amount in order to do its job. Even though there are tools to measure bolt stretch, most people do not own them.

Use Torque Wrench With Torque Specification
Use Torque Wrench With Torque Specification

But, almost anyone who does mechanical work, will have a torque wrench. Most engine torque specifications require 30w engine oil, to get the correct stretch on the bolt. However, using the wrong lubricant, will affect the clamping load.

Also, some specialty fasteners require a specific lubricant. It is important to know which lube, and if any is required.

So, a torque wrench really only, senses friction. For example, take a bolt with a torque specification of 50 ft. lb. Tighten it with no lubrication at all and mark it, so that you know where it stopped turning. Now, loosen the bolt and apply some engine oil, to the threads and under the head of the bolt.

Subsequently, when you torque it again, it will most certainly turn, considerably further. In other words, it has stretched more. This is why it is so important to know what, if any lubricant, the manufacturer specifies for each fastener.

It is also important, to pull on the torque wrench, slowly and evenly, without any type of jerking motions.

Torque Plus Angle, Method Of Tightening Bolts, For Proper Torque Specification

Torque Angle Gauge
Torque Angle Gauge

This method of tightening fasteners in engines is relatively new. The reason for it is, to get a more consistent stretch in the bolts. Since a torque wrench senses friction, there are a lot of variables that can, affect proper tightening.

Start by using the torque wrench, for a small initial torque to seat the bolt. Next, turn the bolt a certain number of degrees of rotation. Now, the manufacturer can be pretty sure that the correct stretch, is apply to the bolt.

An example would be to tighten the bolt to 20 ft. lb. and then, turn it an additional 90 degrees. There are torque angle tools available, that will work with a standard ratchet. Consequently, these tools enable you to accurately measure, the number of degrees you are turning the bolt. Fel-Pro makes a very inexpensive plastic version, that is great for the home mechanic.

What About, Torque To Yield (TTY) Bolts ?

Torque to yield fasteners are stretched to the point that they are, just about to “yield” or lose their springiness. These types of fasteners can only be used once, and then must be replaced.

Torque Plus Angle, Is Not The Same As, Torque To Yield (TTY) !!

A lot of people, including professional technicians. do not understand that. Just because, a bolt uses the “torque plus angle” method of tightening; it is not necessarily, a “torque to yield” (TTY) bolt.

Honda Head Bolts
Honda Head Bolts

If you’re about to get a new Honda, whether it’s one of their 7 seater cars or a 2 seater; it’s important for you to know about the following; if you ever want to tinker with the torque, for whatever reason. Consequently, Honda has used the “torque plus angle” method of tightening head bolts for many years. I do not think that any of their head bolts require replacing. So, they are not, “torque to yield” bolts.

Conclusion

So, not all torque wrenches are universally adaptable to all jobs. Furthermore, it’s important to choose one that features, your torque value requirement, in the middle of its range. For instance, if you need to tighten a fastener to 100 ft.-lbs.; don’t use a torque wrench model that has, an upper range limit of 100 ft.-lbs.

Use Proper Torque Wrench
Use Proper Torque Wrench

Instead, use one that features a range of, say, 25 to 250 ft.-lbs. If tightening a fastener to 50 ft.-lbs.; use a torque wrench that has an upper limit of, about 100 ft.-lbs., and so on. Finally, you may need torque wrenches with different ranges, depending on, the type of work that enters your shop.
